Product description

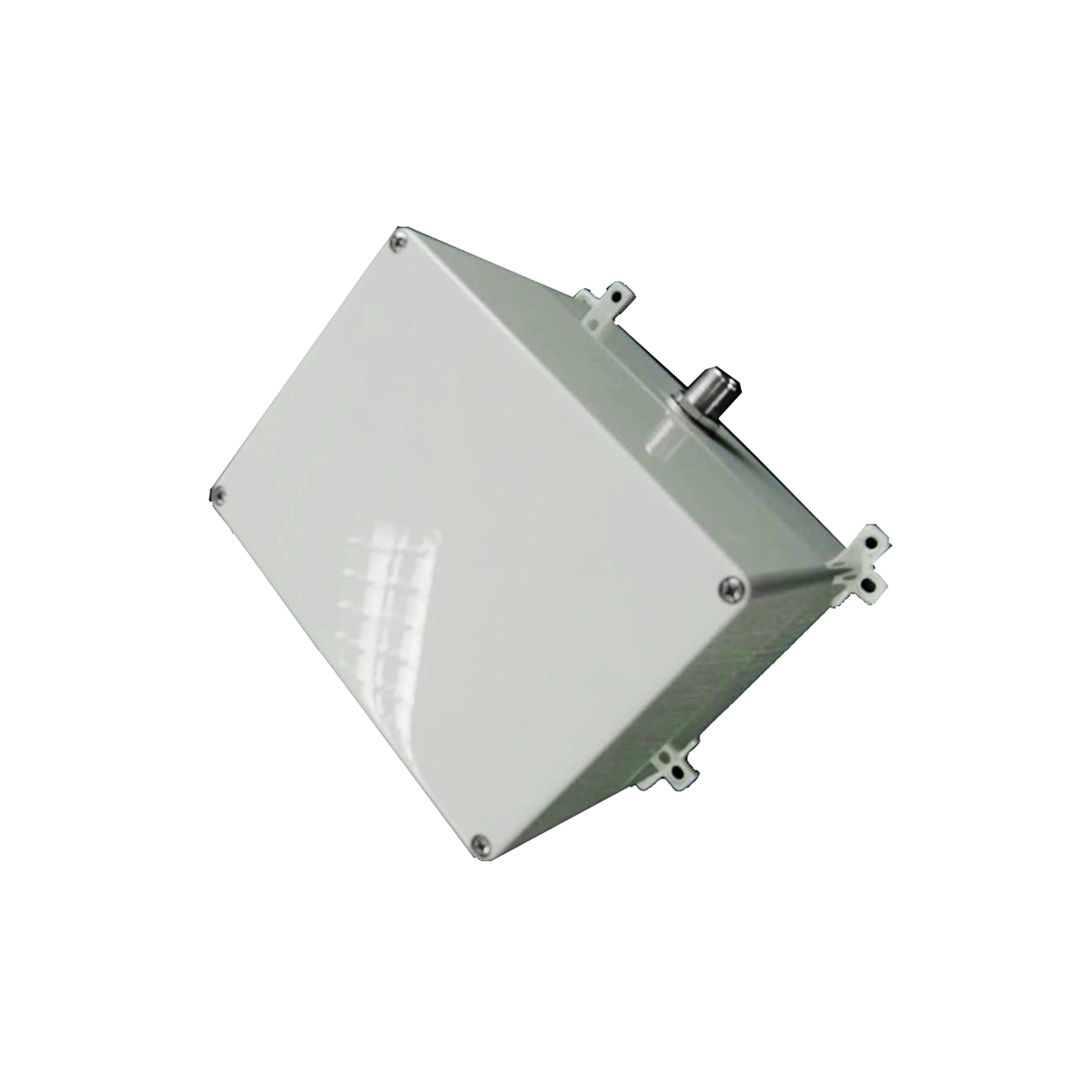

The HK9 microwave measuring device is based on advanced microwave technology and enables fast and precise measurement of the bulk density and moisture of bulk goods and bales on conveyor belts. It transmits a low-power electromagnetic wave via an antenna into the measured product (such as paper, tobacco, sand, etc.), which propagates depending on the dielectric properties of the product. A second antenna receives the transmitted wave (transmission). The power of this wave is used to determine the water content or bulk density of the product.
Thanks to its fast response time and stable microwave measurement, the HK9 is suitable for continuous process monitoring in production. It is calibrated by the user-friendly Specter9 software, which enables simple and effective handling.
Visualization of the transmission measurement in inhomogeneous products
What sets the HK9 apart
Latest microwave technology
The HK9 uses the most advanced microwave technology for measuring bulk density and moisture. This technology ensures precise and reliable measurement at high speed.
Modular, compact design
The modular design of the HK9 enables flexible installation and integration into various production environments, even in confined spaces.
Maintenance-free and wear-free
The device works without moving parts, which minimizes wear and tear and reduces maintenance to a minimum over a long period of time.
Insensitive to vibrations
Vibrations, which could falsify measurement results in other industrial environments, have no influence on the measurement accuracy of the HK9.
Non-contact measurement for fast results
The HK9 measures moisture and bulk density-dependent properties of the products without contact, at a speed of up to 10 measurements per second, which significantly increases the efficiency of the production process.
Technical data
Measuring method
Assembly technology
Die-cast aluminum housing:
230 x 200 x 110 mm
IP65 / NEMA 4
Connections
Power supply:
100 – 240 V AC optional 24 V DC
Analog outputs:
2x 4 – 20 mA
Analog inputs:
1x 4 – 20 mA
Temperature sensor:
PT100
PC interfaces:
RS 232 or RS 485
Relay contacts:
1x max. 5 A / 250 V
Digital inputs:
Ext. selection for start, stop
PROFI-BUS-DP:
User interface
Operation:
6 softkeys integrated in the membrane keypad
Display:
2x 24 characters with backlight
Temperature ranges
Ambient temperature:
-20 °C to +85 °C
Product temperature:
≥0 °C to +100 °C
Antennas
Design:
