HK1-M

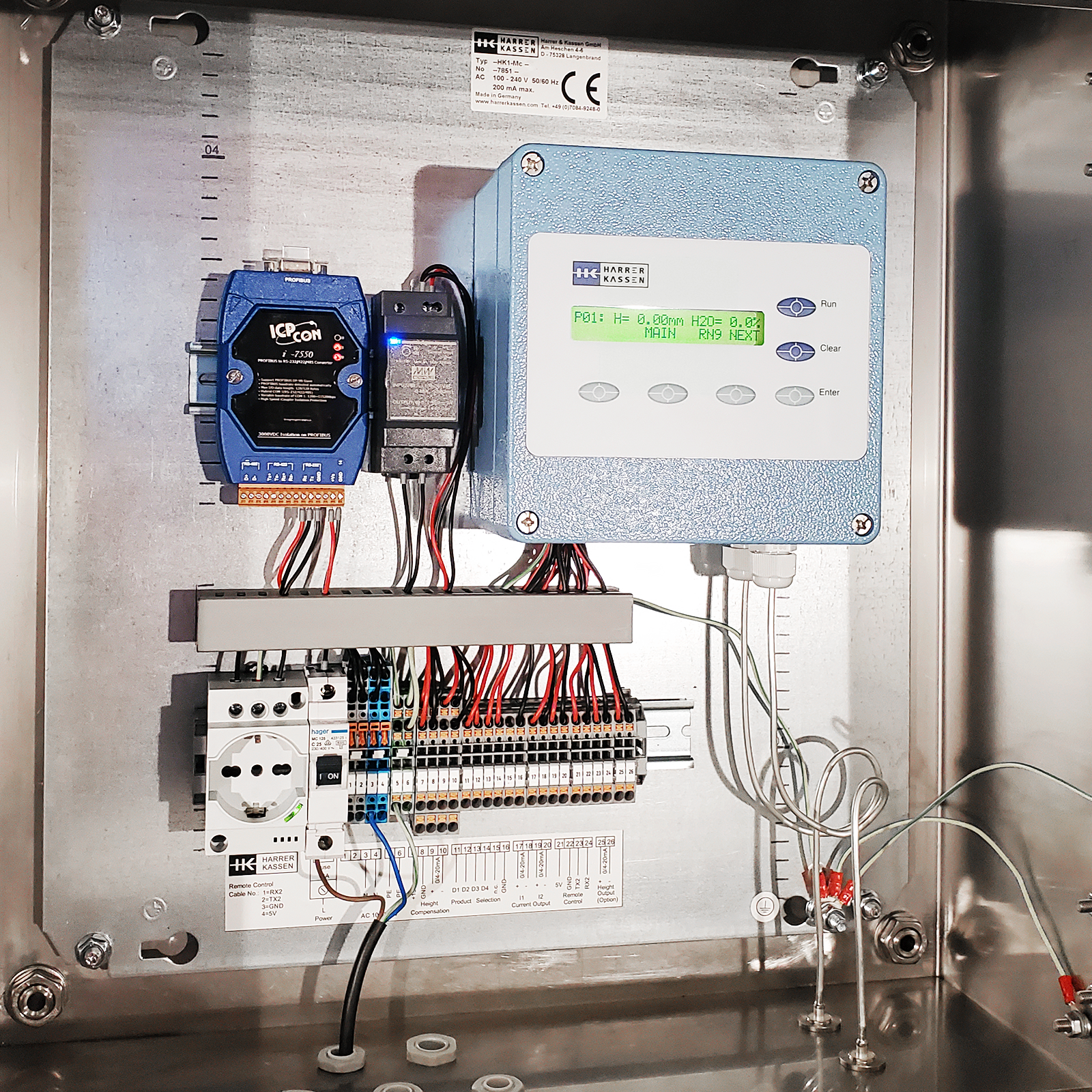

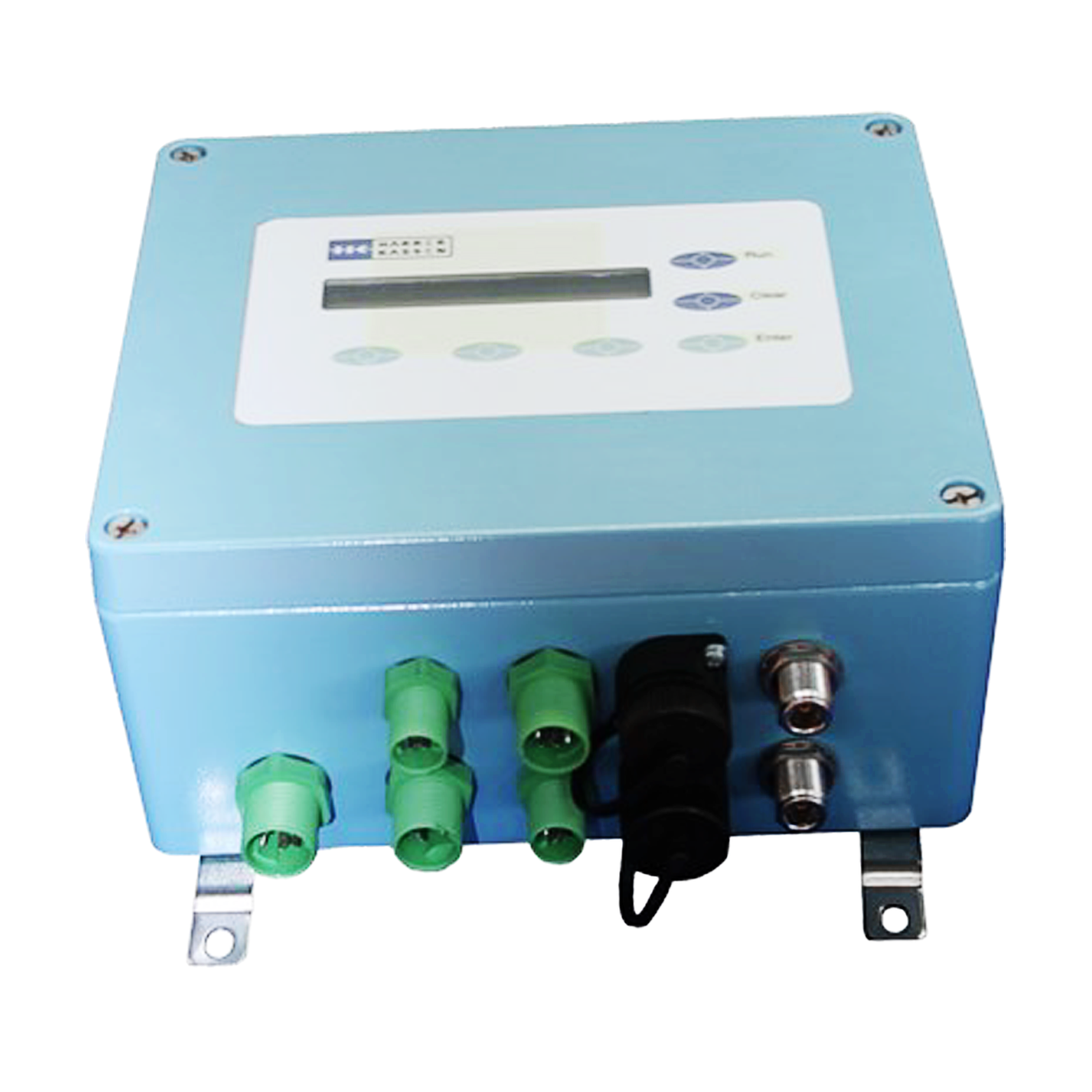

The HK1-M microwave measuring device stands for state-of-the-art digital technology and is ideal for measuring concentration and water content in the food and chemical industries. Its modular design and robust construction guarantee precise, maintenance-free performance even under demanding conditions.

Features at a glance
  • The latest digital microwave technology

  • Modular design of evaluation unit and sensors
  • No moving parts, no wear and tear
  • Vibrations have no influence on the measurement result
  • Compensation input for temperature, conductivity, pressure
  • Maintenance-free and wear-free

  • Remote control from the PC or via separate remote control

  • Up to 16 different calibrations possible
  • PT100 temperature sensor is standard, NTC also available as an option

Product description

The microwave measuring device HK1-M offers an innovative solution for concentration and water content measurement, specially developed for the requirements of the food and chemical industry. Thanks to its modular design and the use of advanced microwave technology in the ISM band, it sets new standards in precision and reliability.

The measuring method is based on the generation of low-power electromagnetic waves. These waves are coupled into the product to be measured via an antenna and penetrate the medium. The attenuation and the phase shift of the received wave change depending on the dielectric properties of the product. These parameters serve as the basis for determining the water content or dry mass. Microwave measurements are characterized by high stability and an extremely fast response.

The HK1-M supports numerous sensor and antenna types that can be adapted for different applications. Our experts will be happy to advise you on which solution delivers the best results for your specific requirements.

Visualization of the transmission measurement in inhomogeneous products

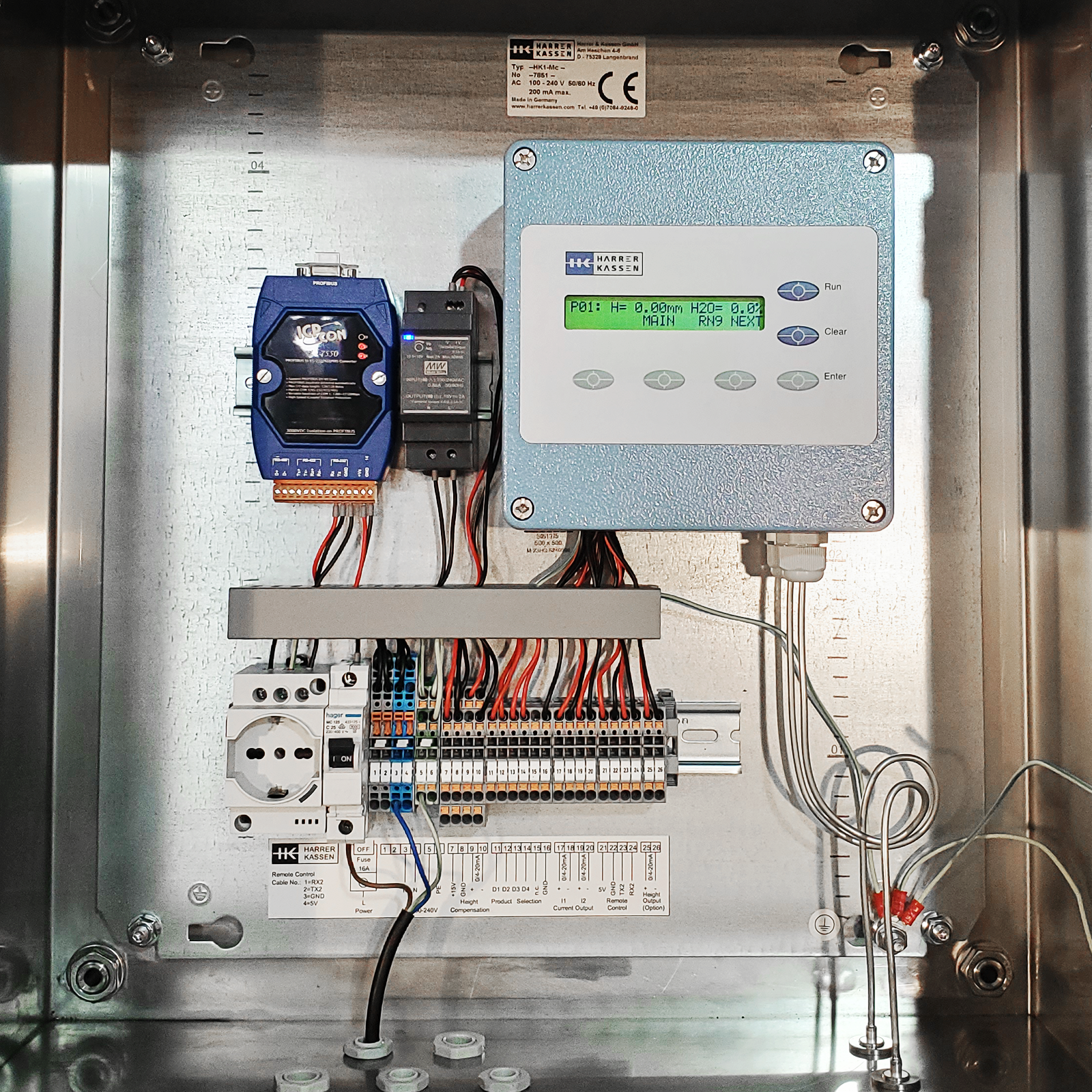

What sets the HK1-MC apart

Digital microwave technology

The HK1-M uses state-of-the-art digital microwave technology in the ISM band and thus guarantees precise and stable measurement results – even under difficult conditions.

Modularity for maximum flexibility

The modular design of the evaluation unit and sensors enables optimum adaptation to the production environment. With up to 16 calibrations, the device is extremely versatile.

Robust construction

The device is maintenance-free, wear-free and resistant to vibrations, which can often lead to measurement errors with other systems.

Convenient operation

The HK1-M offers intuitive operation directly on the device via integrated softkeys or convenient remote control via PC or a separate remote control.

Technical data

Measuring method
Type of procedure:
Microwave technology ISM band
Assembly technology

Die-cast aluminum housing:

230 x 200 x 110 mm

Protection class:

IP65 / NEMA 4

Connections

Power supply:

100 – 240 V AC optional 24 V DC

Analog outputs:

2x 4 – 20 mA

Analog inputs:

1x 4 – 20 mA

Temperature sensor:

PT 100, optional NTC

PC interfaces:

RS 232 or RS 485

Relay contacts:

1x max. 5 A / 250 V

Digital inputs:

Ext. selection for 16 products, start, stop

PROFI-BUS-DP:

optional
User interface

Operation:

6 softkeys integrated in the membrane keypad

Display:

2x 24 characters with backlight

Temperature ranges

Ambient temperature:

-20 °C to +85 °C

Product temperature:

≥0 °C to +130 °C
up to +140 °C on request

Sensors and antennas
