HK12 Laboratory device

HK12

      NIR- laboratory device for liquid products with different consistencies

  • state-of-the-art NIR (Near Infrared) spectroscopy
  • Measurement of any organic components e.g. fat, protein, water, etc.
  • color independent measurement
  • no "drift by lamp aging"



The HK12 is an NIR- (Near- Infrared) laboratory measurement device with state- of- the- art technology. Which can measure all organic components in liquids of different consistencies.

With only one measurement you can measure simultaneously all valuable components like fat, protein, lactose, water, etc.

Through the simple sample preparation, the light and compact construction of the HK12, it is ideally suitable for laboratory operation.

With the easy to use calibration function, our customer can take spectra's at the device and read the internal stored spectra with the calibration software.

Due to this function, our customers can expand independent or with our help an existing calibrations or create new calibrations.


Operating software
With the operating software HK- particuLAB Liquid, it is possible to measure simultaneously up to 10 organic components and calculate 5 further out of the measured components e.g. protein content without connective tissue.

It is possible to display the measurements as a single result (right picture) or all results listed (lower picture).

You can print the measurements as last result, today’s results or weekly results. All measurements are also stored in a csv. file, which can be opened with Excel.
HK particuLAB Liquid

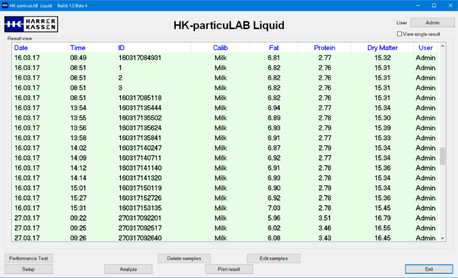

HK particuLAB Liquid List

Fields of applications:

  • liquid products with different consistencies



Housing:
   Size LxDxH
   Weight
   Color
ABS plastic
310 x 270 x 190mm
6 Kg
RAL 9002
Connections
   Power supply
   PC interfaces

100-240V AC
USB
User interface
   Operating
   Display

4 integrated soft keys in keypad
2 x 24 characters illuminated
Ambient conditions
   Environment temperature
   Product temperature

-20°C to +30°C
 >0°C to +70°C
Flyer HK12
